Ion
Automated extraction minimizes extraction time and allows avoiding operator's errors.
The device is used for the isolation of nucleic acids from blood, plasma, mucosal smears and sputum.

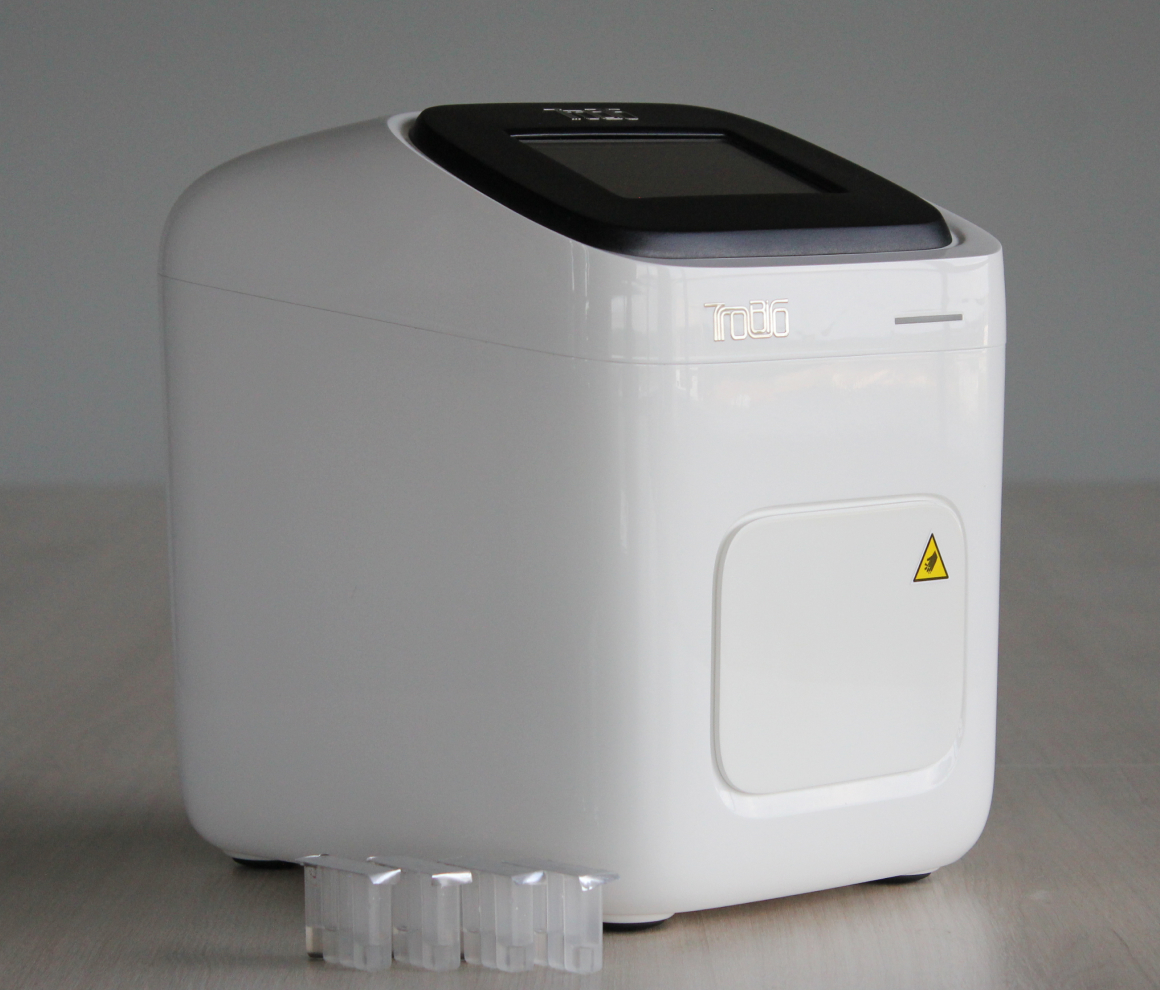

Ion is a portable automated nucleic acid extractor.

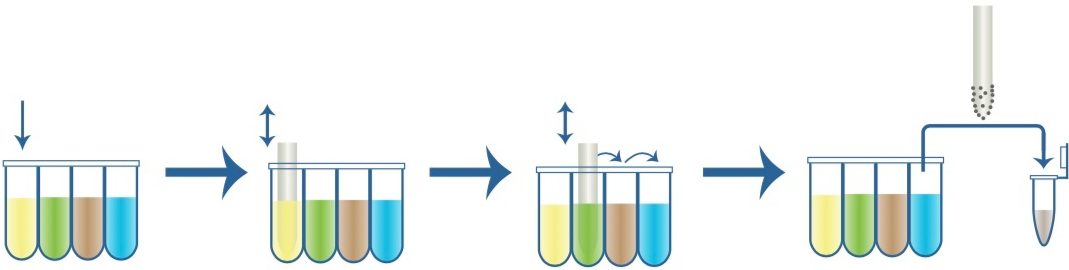

Extraction principle
4
3
2
1
1
2
3
4
1
2
3
4
1
2
3
4
Step 1
Step 2
Step 3
Step 4
Placing a sample into the tube #1
Lysis
Washing
Selection of nucleic acids and transfer with magnetic particles into the eluent tube
Magnetic particles
Magnetic rod tip
Disposable extraction cartridge
Eluent tube
Magnetic rod tip
Eluent tube
Disposable extraction cartridge

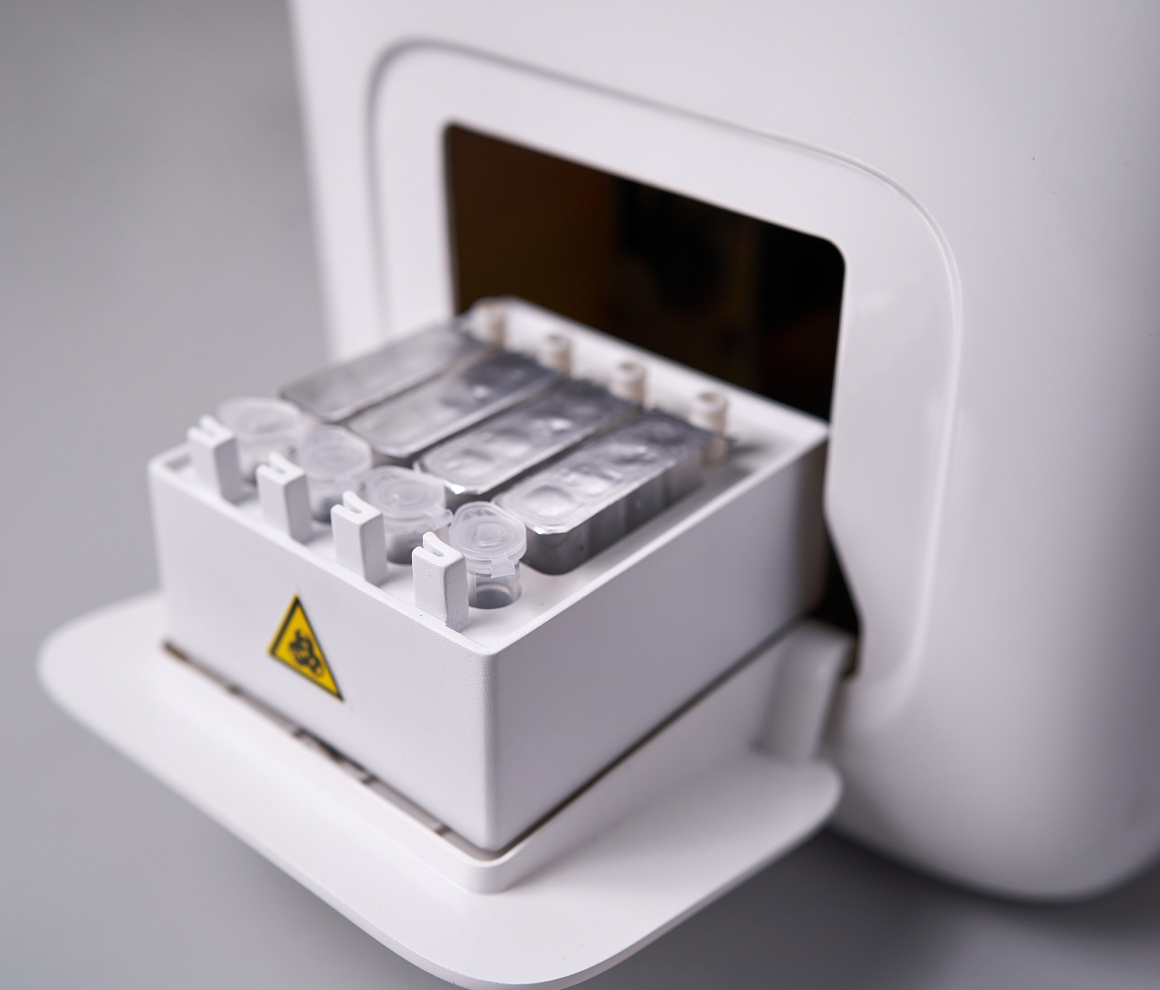

Extraction kit contents
Specifications
200 ml
Isolated sample volume
50 ~ 100 copies
Sensitivity
UV lamp
Disinfection
4
Number of channels
24 V, 3.3 A
Power supply
190x240x252 mm
Overall dimensions
4.7 kg
Weight
Time of extraction
10 – 15 min
Sample type
blood, plasma, sputum, mucous secretions
Method of extraction
magnetic particles

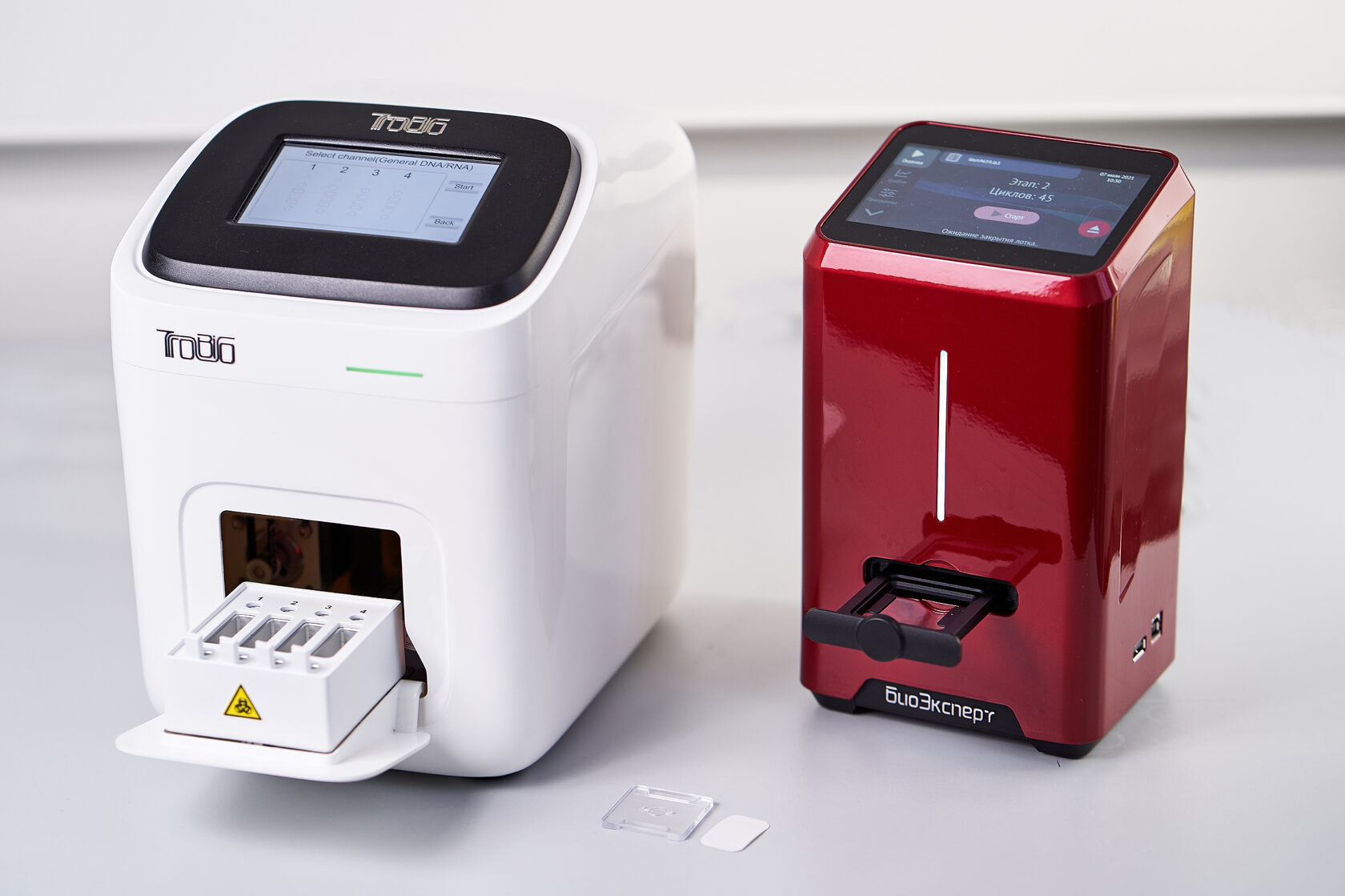

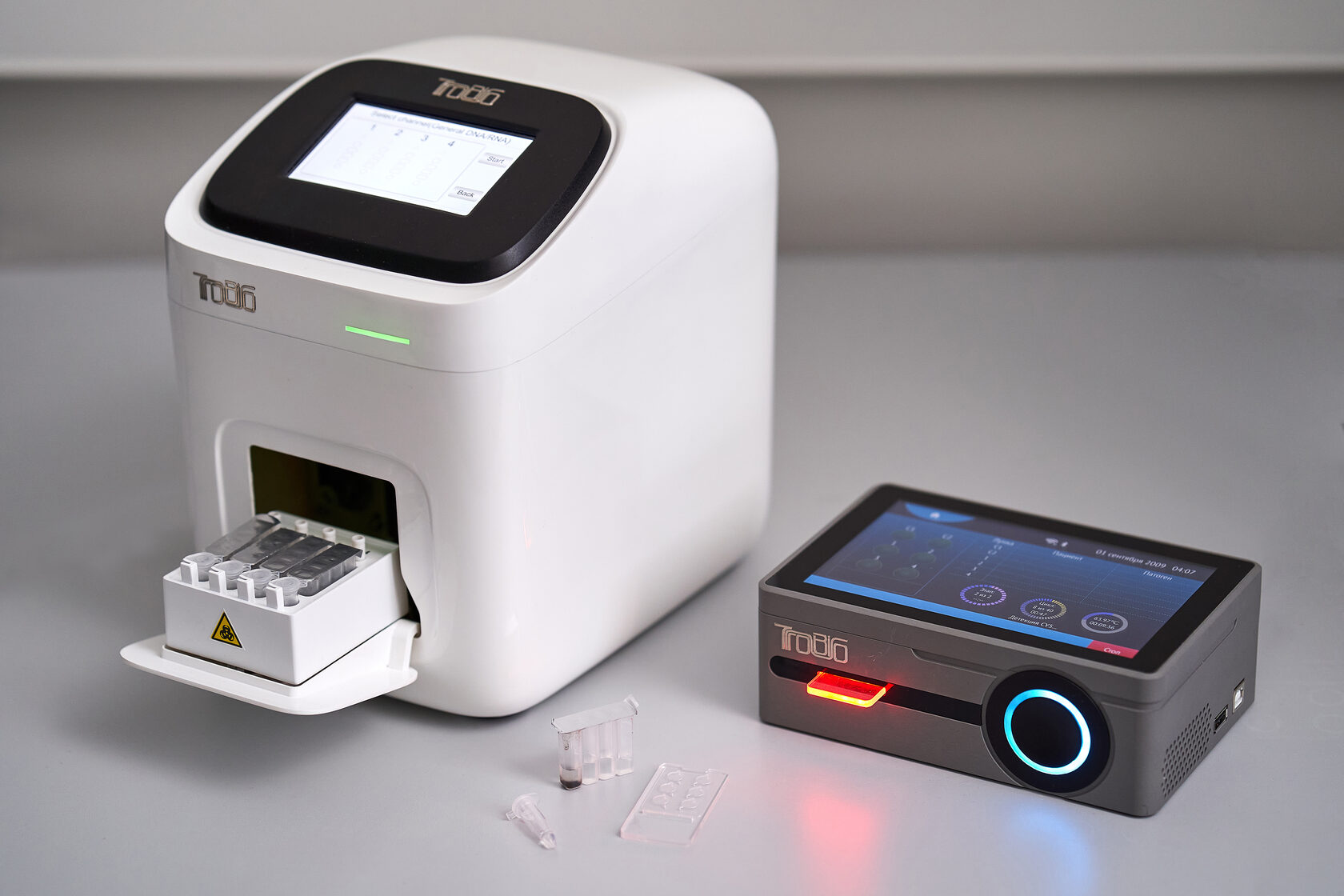

Delivery options
PCR cartridges
Extraction kit
Ion automated nucleic acid extractor
BioExpert nucleic acid thermocycler
Kit contains
PCR cartridges
Extraction kit
Ion automated nucleic acid extractor
Kit contains
Gene-Alpha nucleic acid thermocycler
