Gene-Alpha

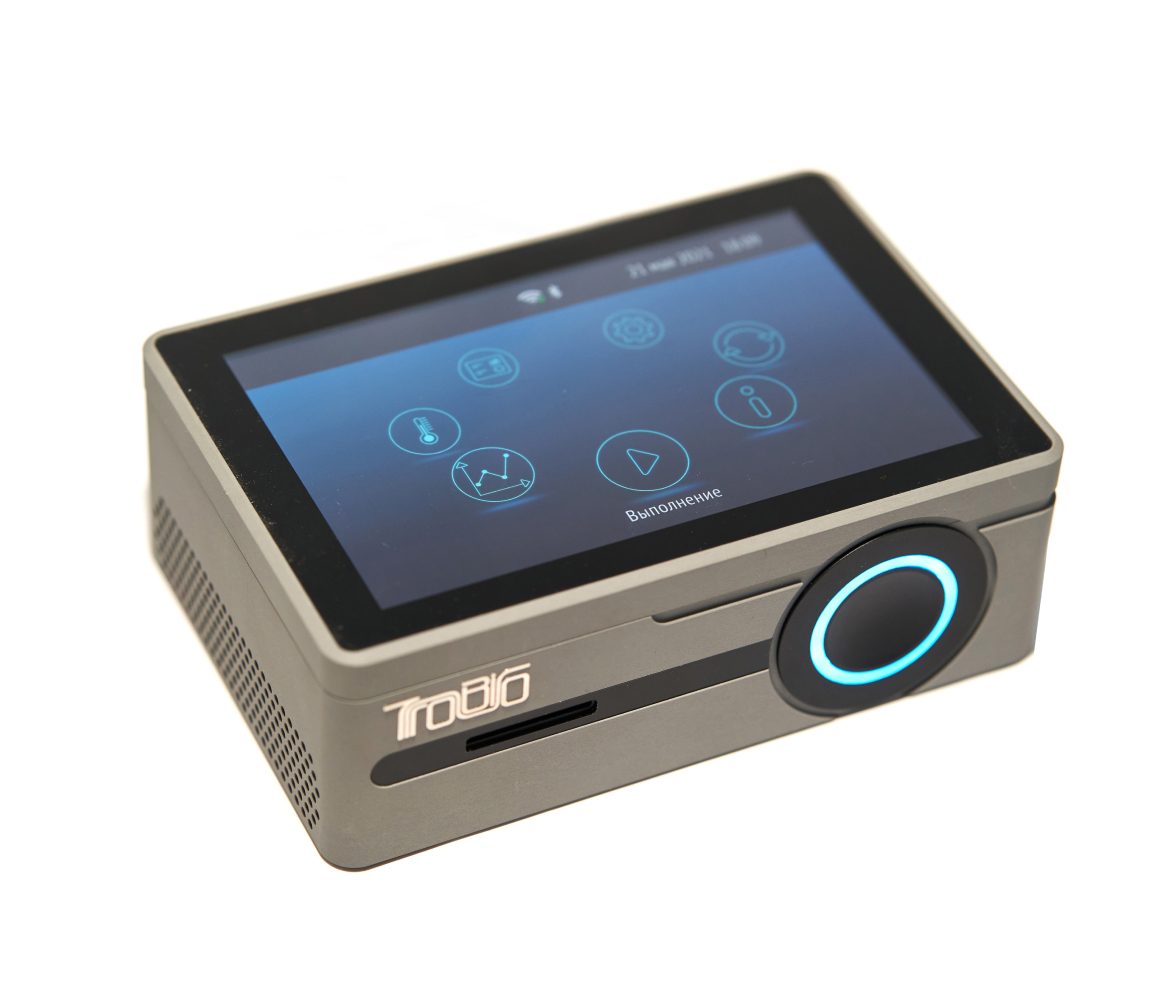

Gene-Alpha portable real-time DNA thermocycler allows high-speed on-site detection of infectious pathogens.
The device provides high-speed amplification (15 − 20 min) when using isothermal test systems.
The portable kit case contains all the equipment required for the assay.
The sample capacity of the device is up to 6 samples per cartridge at the same time.

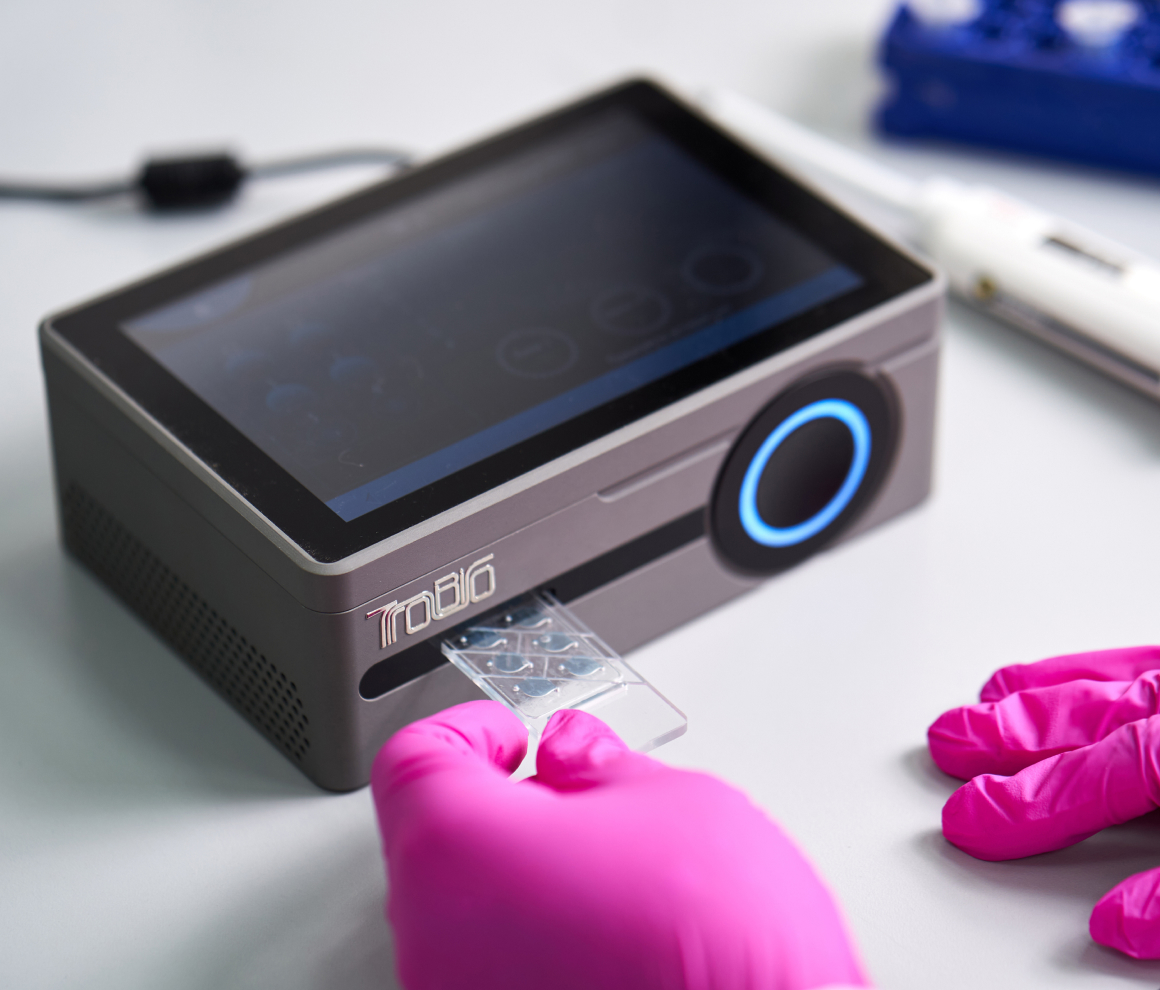

The TroBio Gene-Alpha works with any real-time and isothermal PCR systems that use FAM (HEX) and Cy5 dyes.
How it works
Advantages
The device fits into a compact protective case
Portable
Provides simultaneous analysis of up to 6 samples per cartridge
Versatile
20 min with an isothermal test system and 40 min with a classical PCR test system
Fast
High accuracy and reproducibility is provided without calibration required
Accurate
The price is much lower than that of similar products on the market
Favorable price
The built-in computer allows the instrument to be used without an external PC connection
Autonomous
From 100 DNA/RNA copies
High sensitive
Large touchscreen display, intuitive interface
Easy to use
Create custom amplification protocols for research purposes
Customisable
Wi-Fi and Bluetooth connectivity for managing the device, software updates and remote transmission of analysis results
Wireless

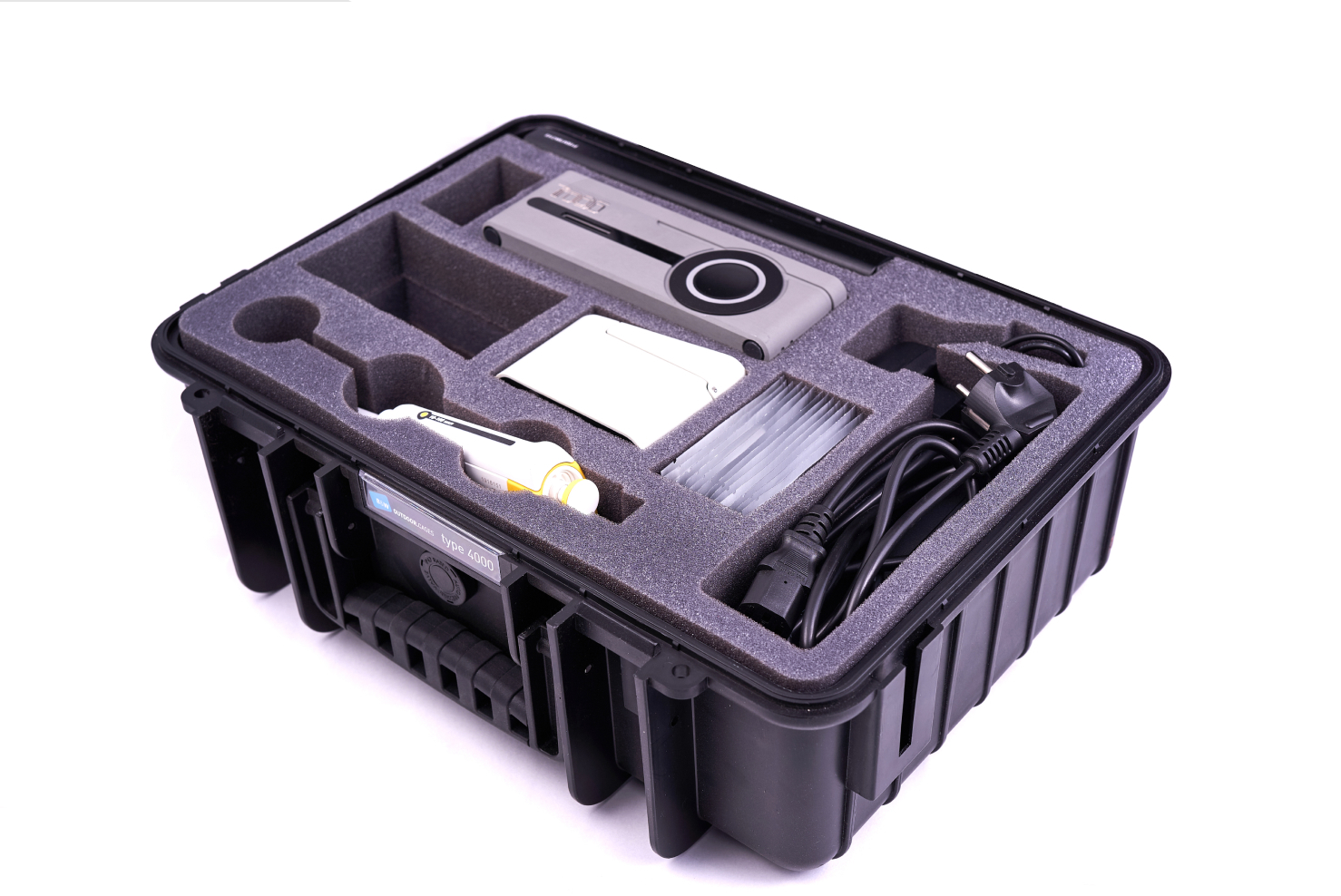

The kit case contains an optional sample preparation thermostat, a set of disposable PCR cartridges and a dispenser.
Full set
Specifications
0.1°С
Temperature accuracy
FAM/HEX, Cy5
Calibrated dyes
510÷570 nm, 670÷690 nm
Wavelengths of detection
470, 635 nm
Excitation source wavelengths
less than 1 min
Ready for use after power-on
4°C/sec
Heating/cooling speed
2: for pathogen, internal control
Optical channels
6 x 25 µl
Number of wells
2 kg
Weight
30x60x3 mm
Cartridge dimensions
184x122x65 mm
Dimensions
Gene–Alpha portable real-time DNA thermocycler
Power supply unit
Cartridges
Dispenser

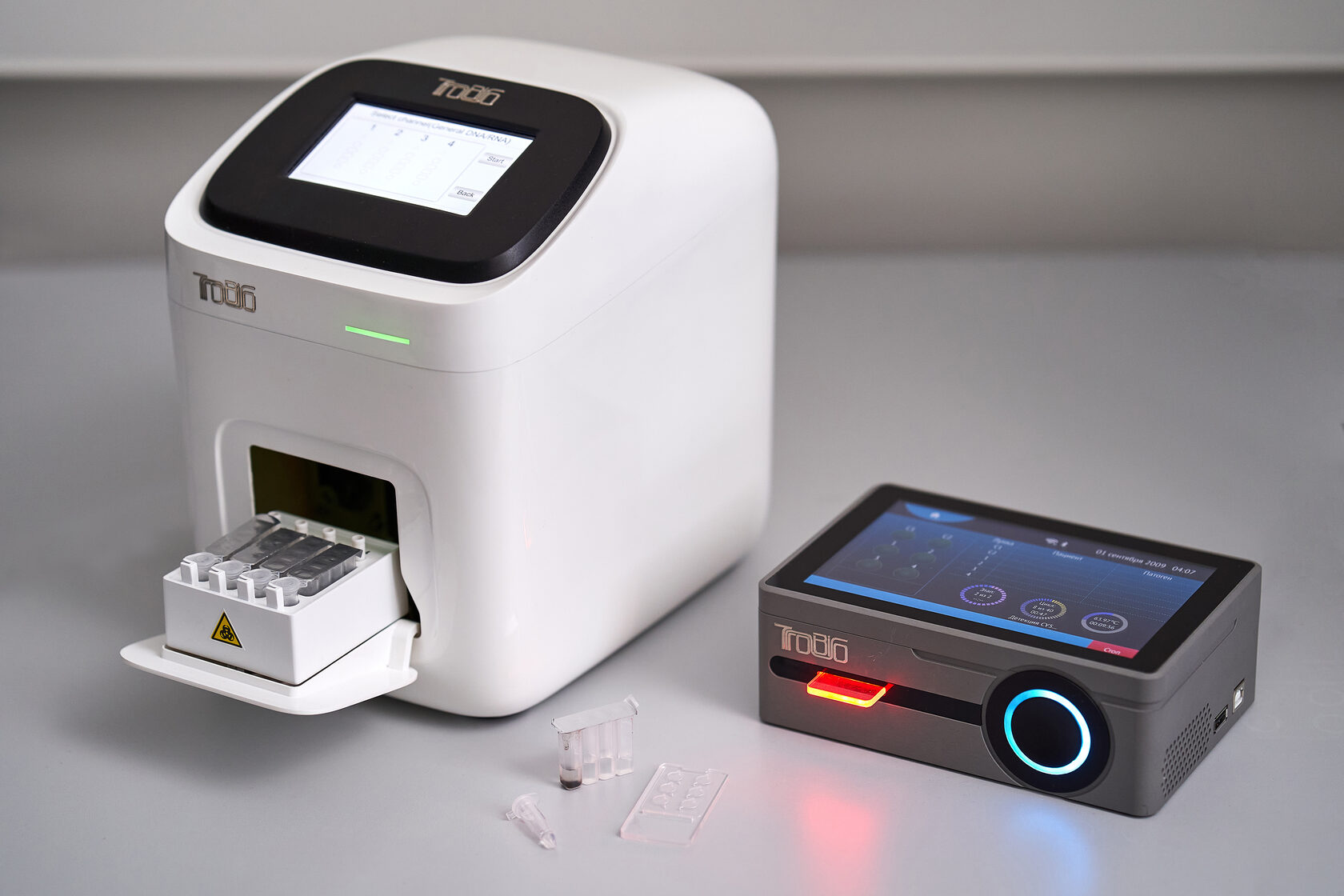

Terra dry block thermostat for research and clinical diagnostics

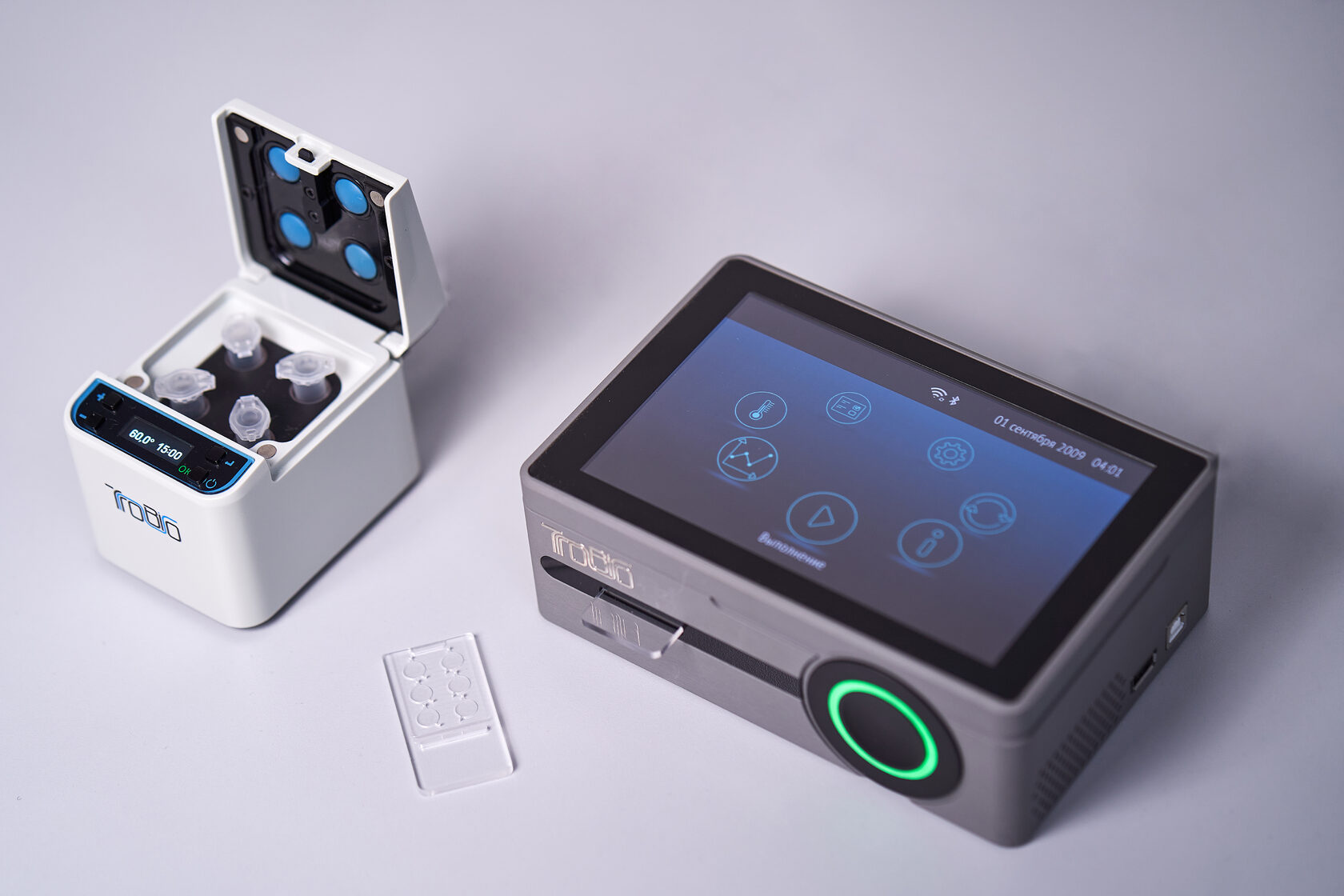

Basic set
The delivery package can be adjusted for your needs
10 microfluidic cartridges
Dispenser
Power supply
Gene-Alpha portable RT DNA thermocycler
Battery (with recharging unit)
