BioExpert
The first portable real-time PCR nucleic acid analyzer based on microfluidic cartridge technology
Specs
Due to microfluidic cartridge technology thermal cycling speed is more than 30% higher than standard PCR thermocycler
SPEED
BioExpert performs high-speed detection of infectious disease agents, including SARS-CoV-2. It is an optimal solution for mobile laboratories.
BioExpert is compatible with a majority of real-time PCR test systems.

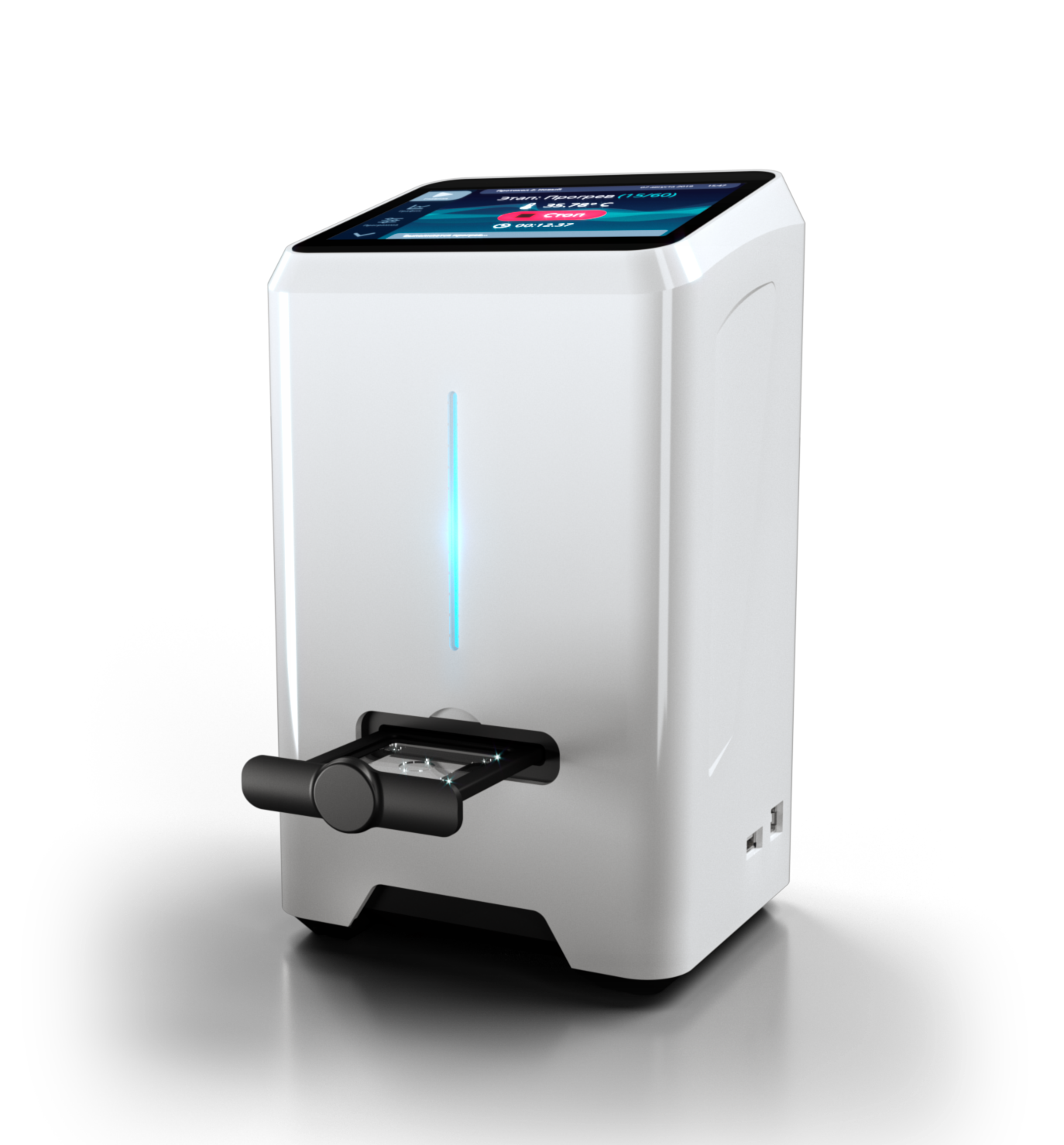

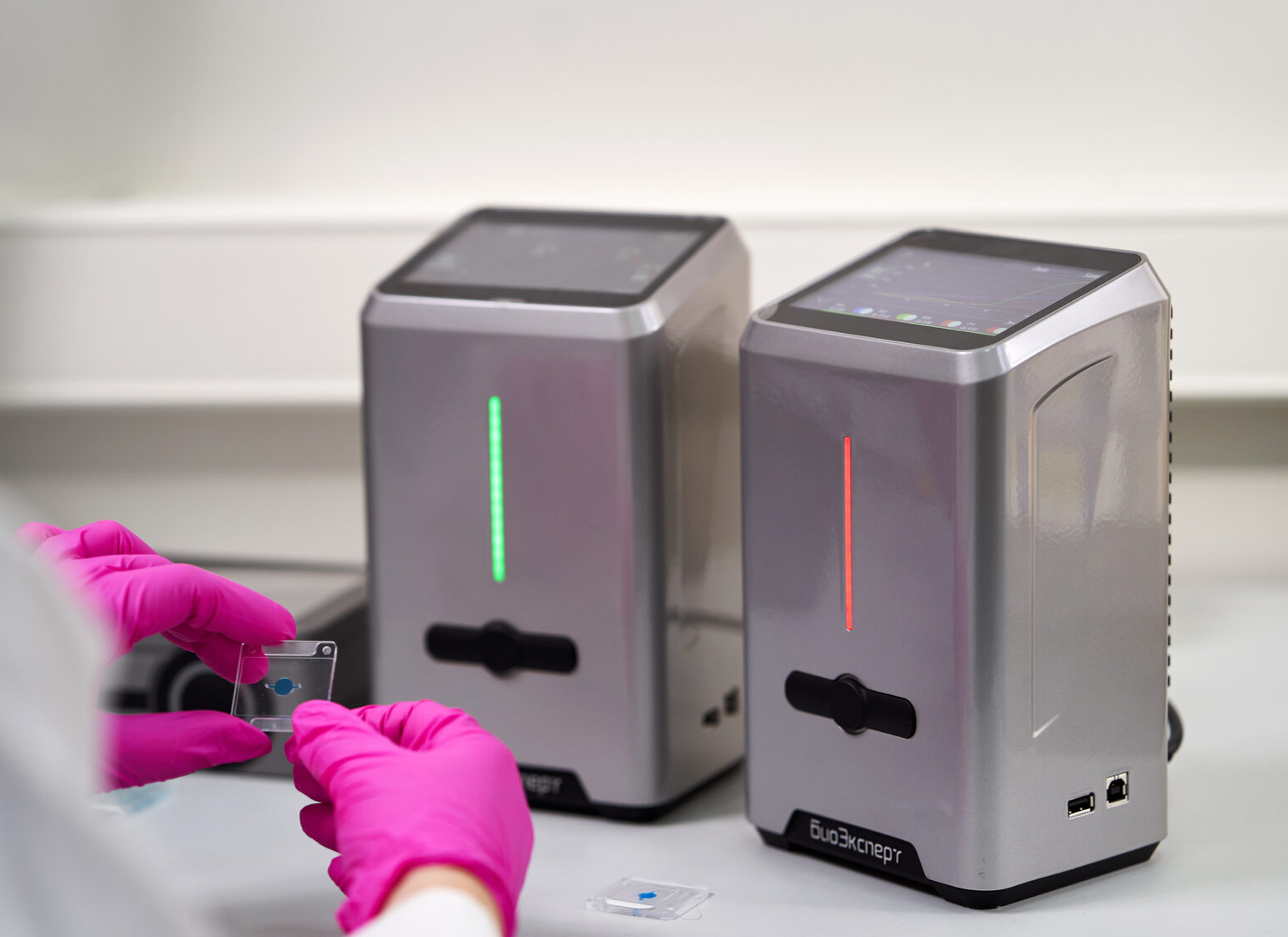

BioExpert mobile detecting real-time PCR thermocycler
BioExpert is registered as a medical device, reg. ID: RZN 2021/13 188 from 15.01.2021.
BioExpert performs high-speed detection of infectious disease agents, including SARS-CoV-2, and does not require stationary laboratory conditions.
BioExpert is compatible with a majority of real-time PCR test systems.
BioExpert mobile detecting real-time PCR thermocycler
BioExpert is registered as a medical device, reg. ID: RZN 2021/13 188 from 15.01.2021.

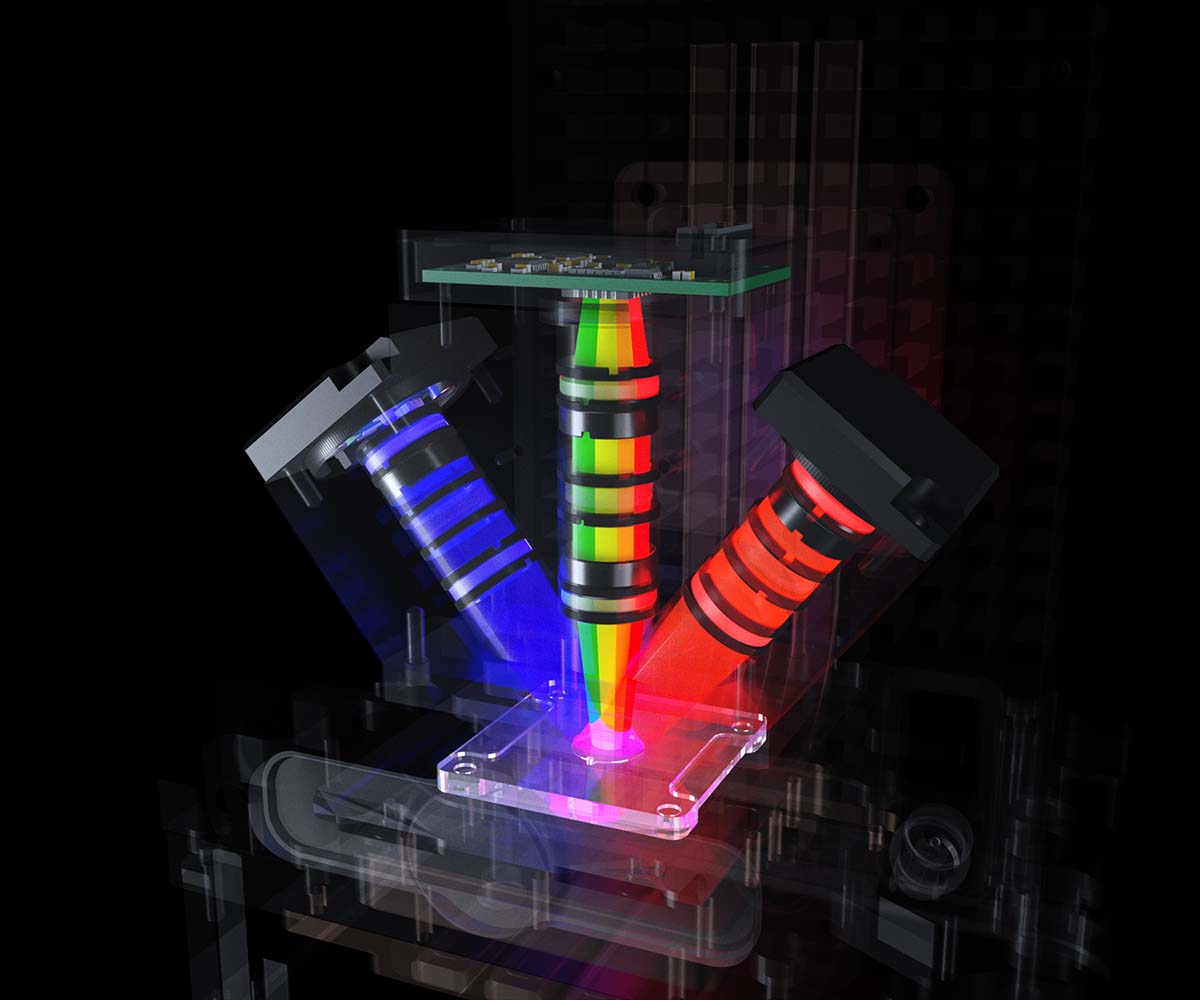

Fluorescence detection is based on the use of a unique multispectral detector with detection wavelengths of 520 nm, 560 nm, 610 nm, and 680 nm.
The optical system contains three excitation LEDs at 470 nm, 580 nm, and 632.8 nm.
Revolutionary optical design
in a compact package
Revolutionary optical design
in a compact package
Fluorescence detection is based on the use of a unique multispectral detector with detection wavelengths of 520 nm, 560 nm, 610 nm, and 680 nm.
The optical system contains three excitation LEDs at 470 nm, 580 nm, and 632.8 nm.

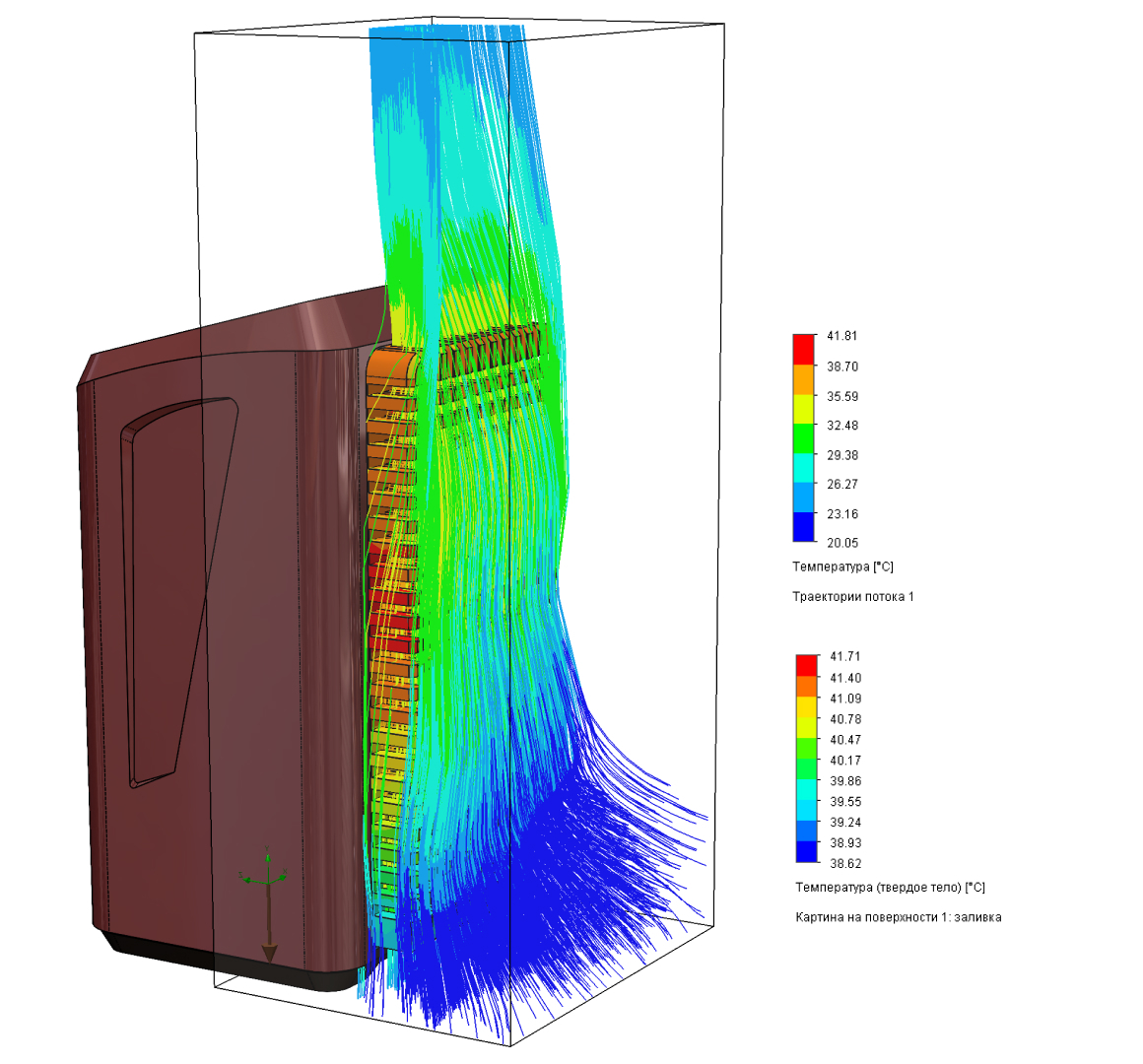

Patented passive cooling system enables a higher rate of the reaction mixture heating/cooling
Absolutely silent
The unique patented Peltier element provides exceptional speed and accuracy of thermocycling.
Save results on USB flash drive
Get instant results
Update the device via the Internet
Send and receive amplification programs
Send results to e-mail
Use BioExpert anywhere
with Ion nucleic acid extractor
PCR cartridge
Sample volume is 25 µl
Due to the cartridge shallow cell depth of only 600 microns and a fast speed of heating PCR analysis runs 30% faster
How to work with BioExpert PCR cartridge

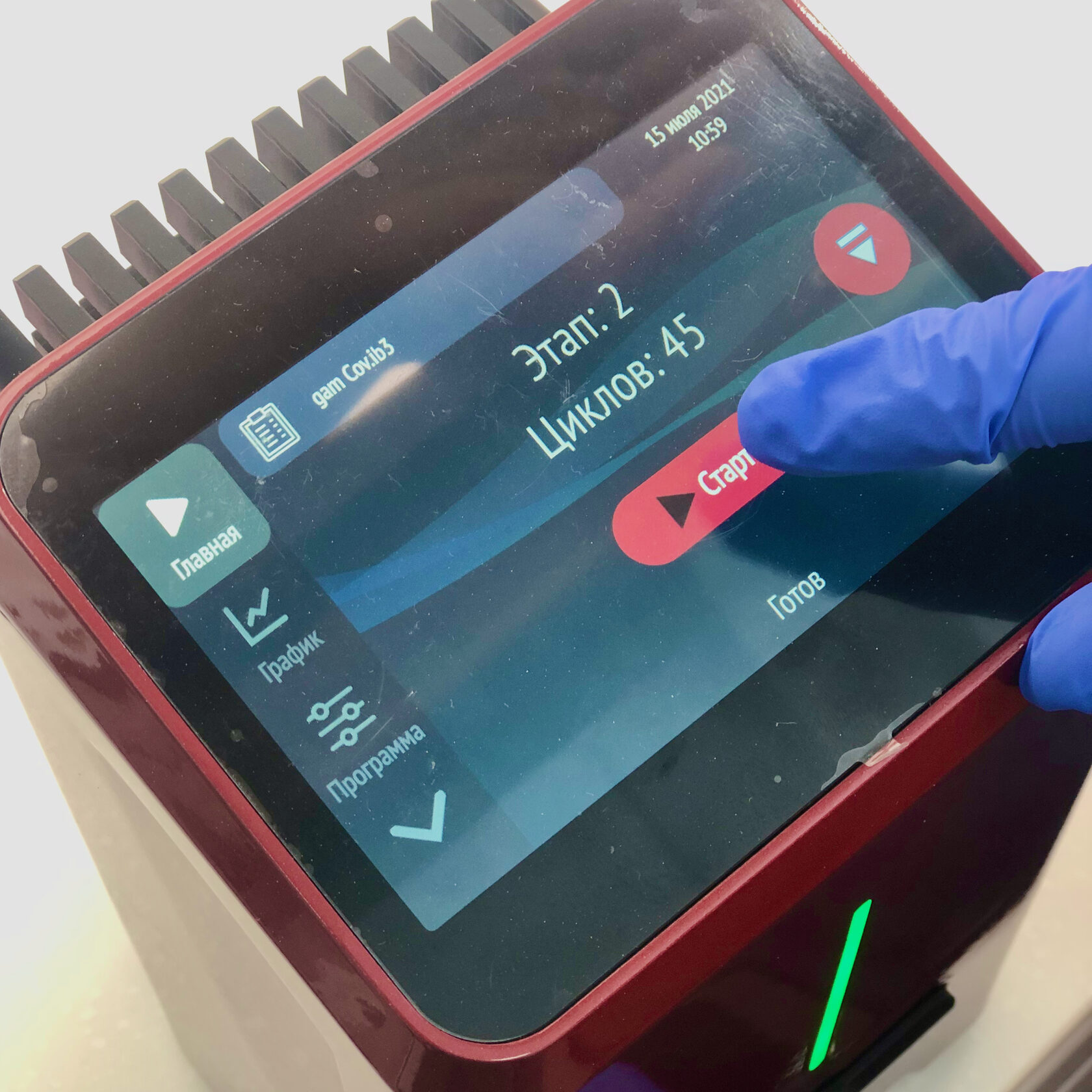

Start the amplification program

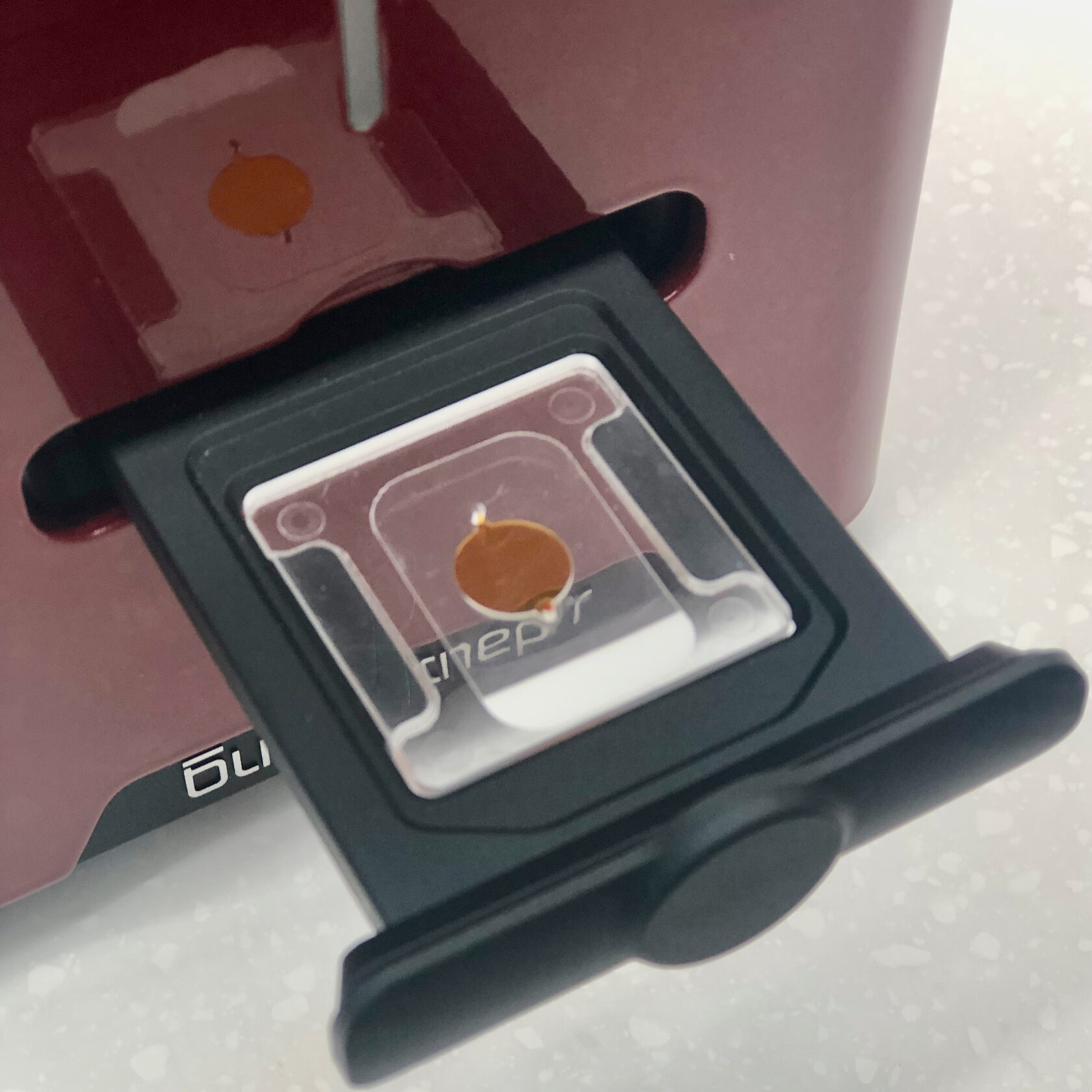

Place the PCR cartridge in the tray
Seal the filling channels

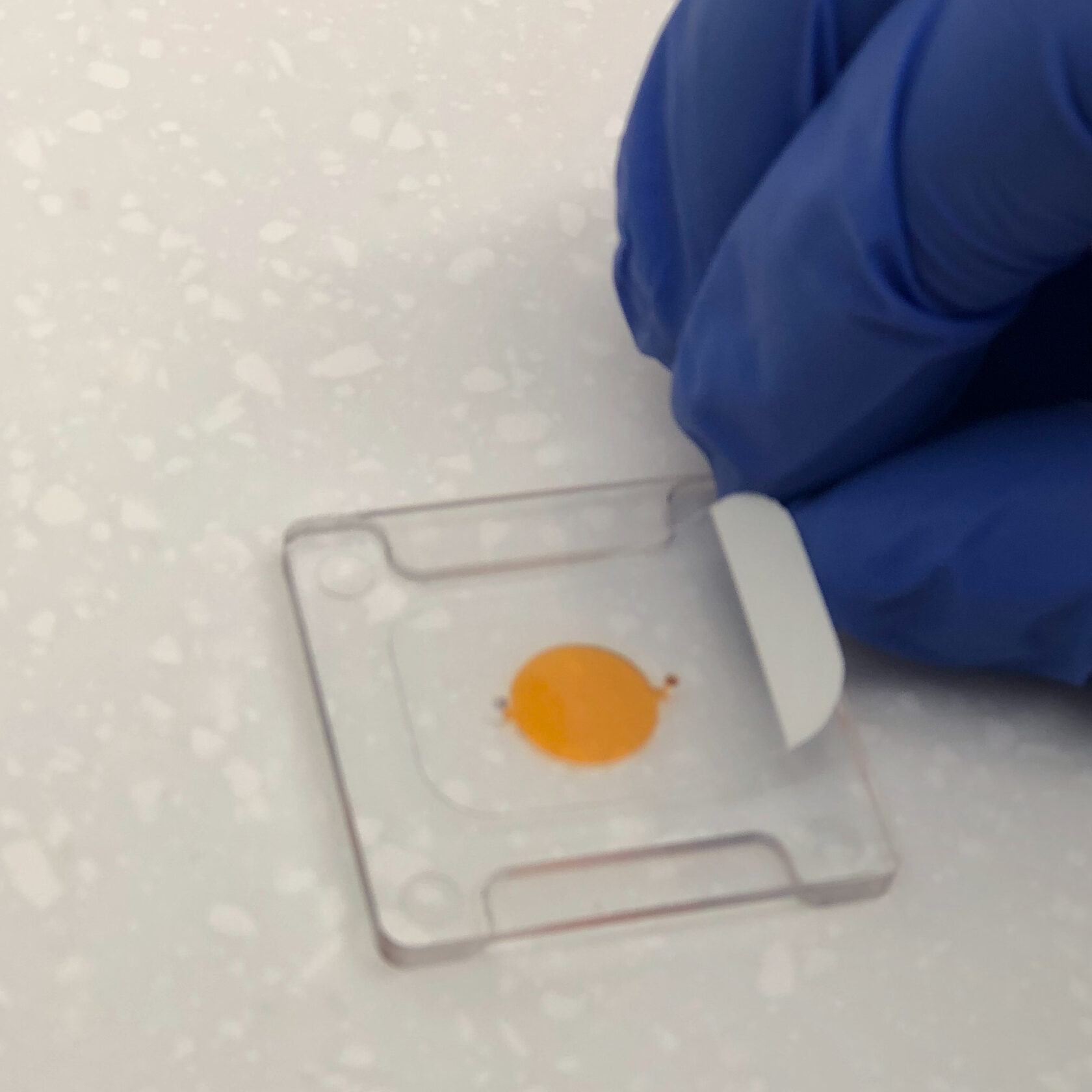

Remove the protective layer from the PCR film

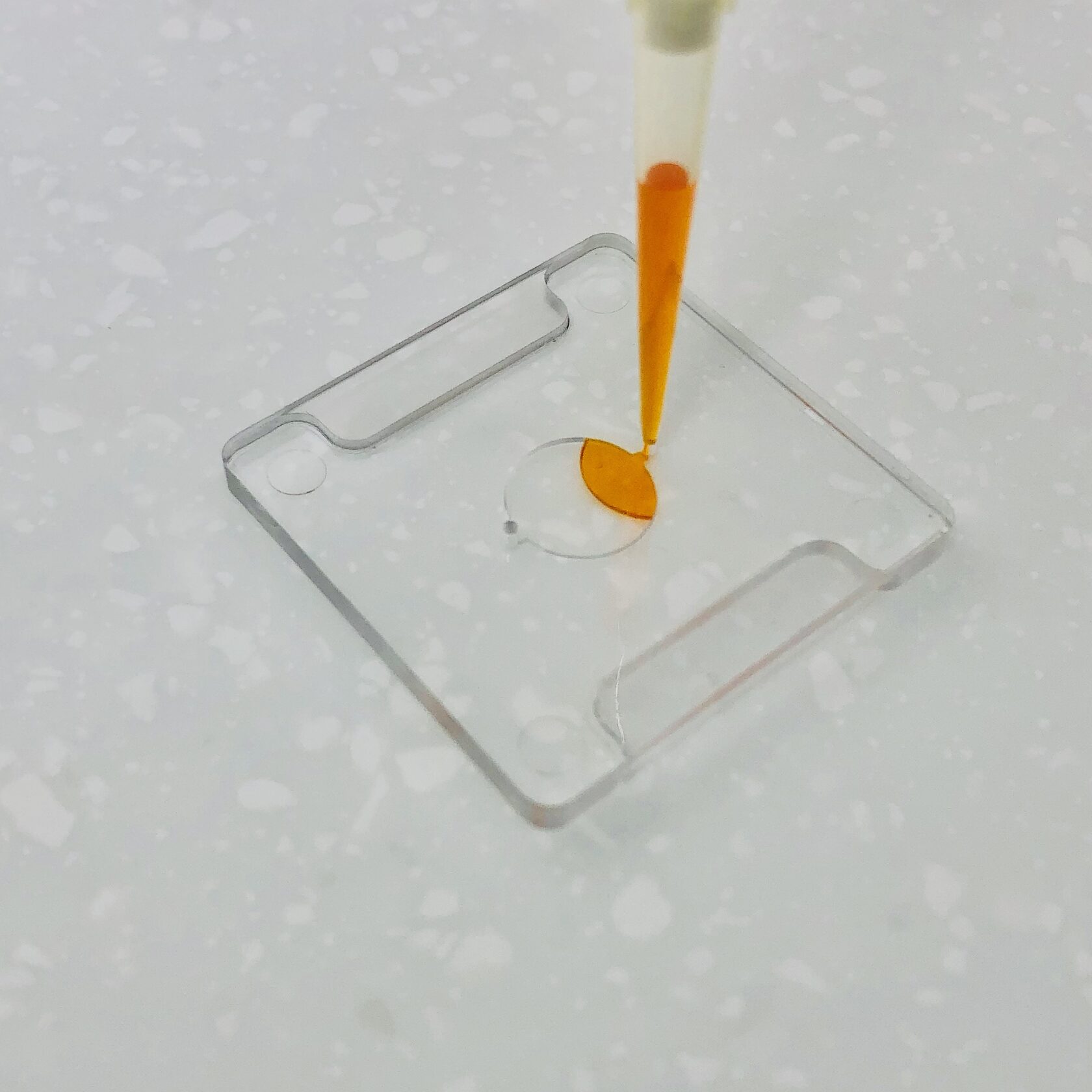

Fill the PCR cartridge with 25 µl of sample

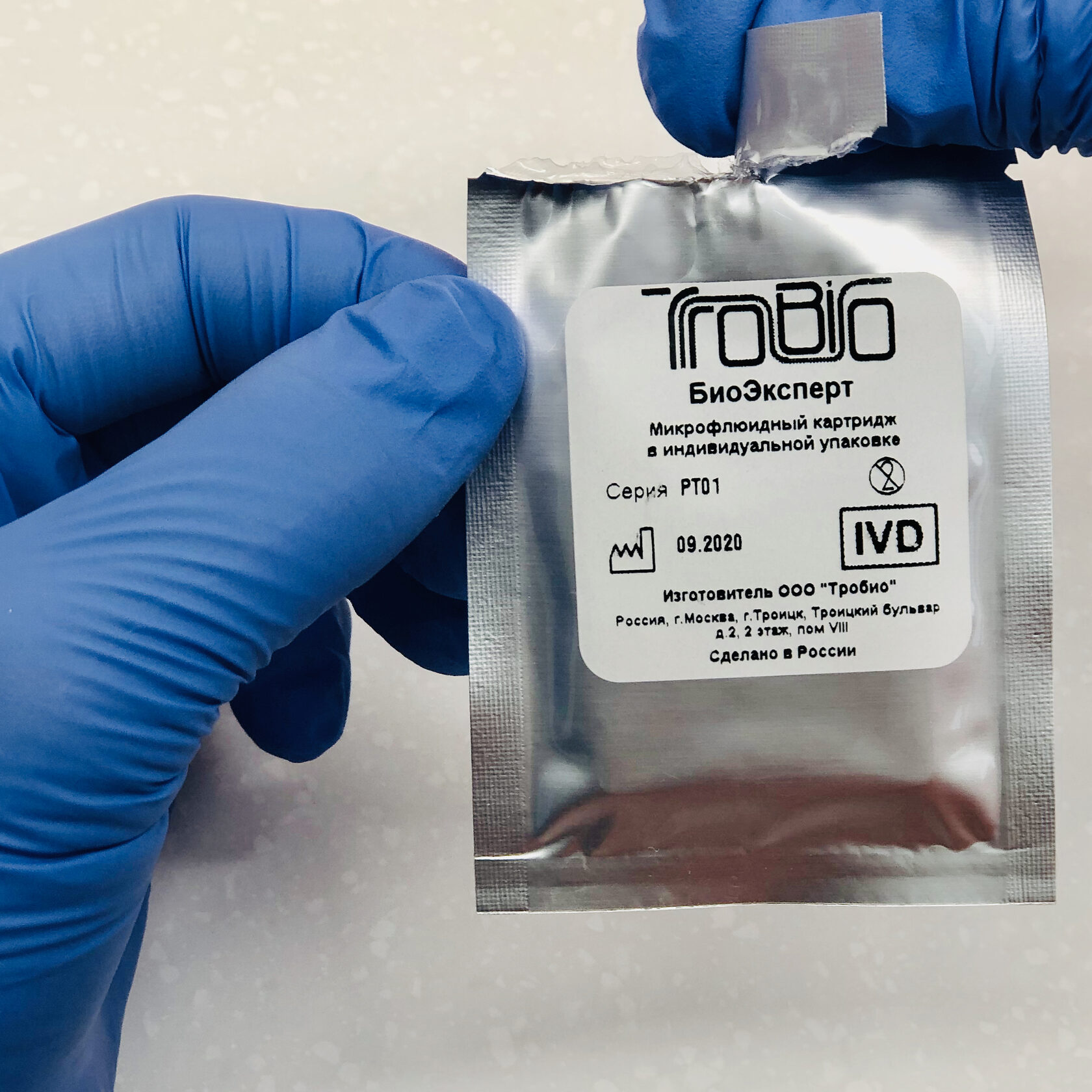

Open the protective package of the PCR cartridge
1
2
3
5
6
4
Technical Specifications
Heating/cooling rate
6°C/sec.
Calibrated dyes
FAM, HEX, ROX, and Cy5
Detection wavelengths
520, 560, 610, and 680 nm
Excitation source wavelengths
470, 580, and 632.8 nm
Number of simultaneously detected pathogens
4
Readiness for operation after "power on"
within 1 min.
Weight
4 kg
Cartridge dimensions
35x35x3 mm
Device size
125x125x230 mm

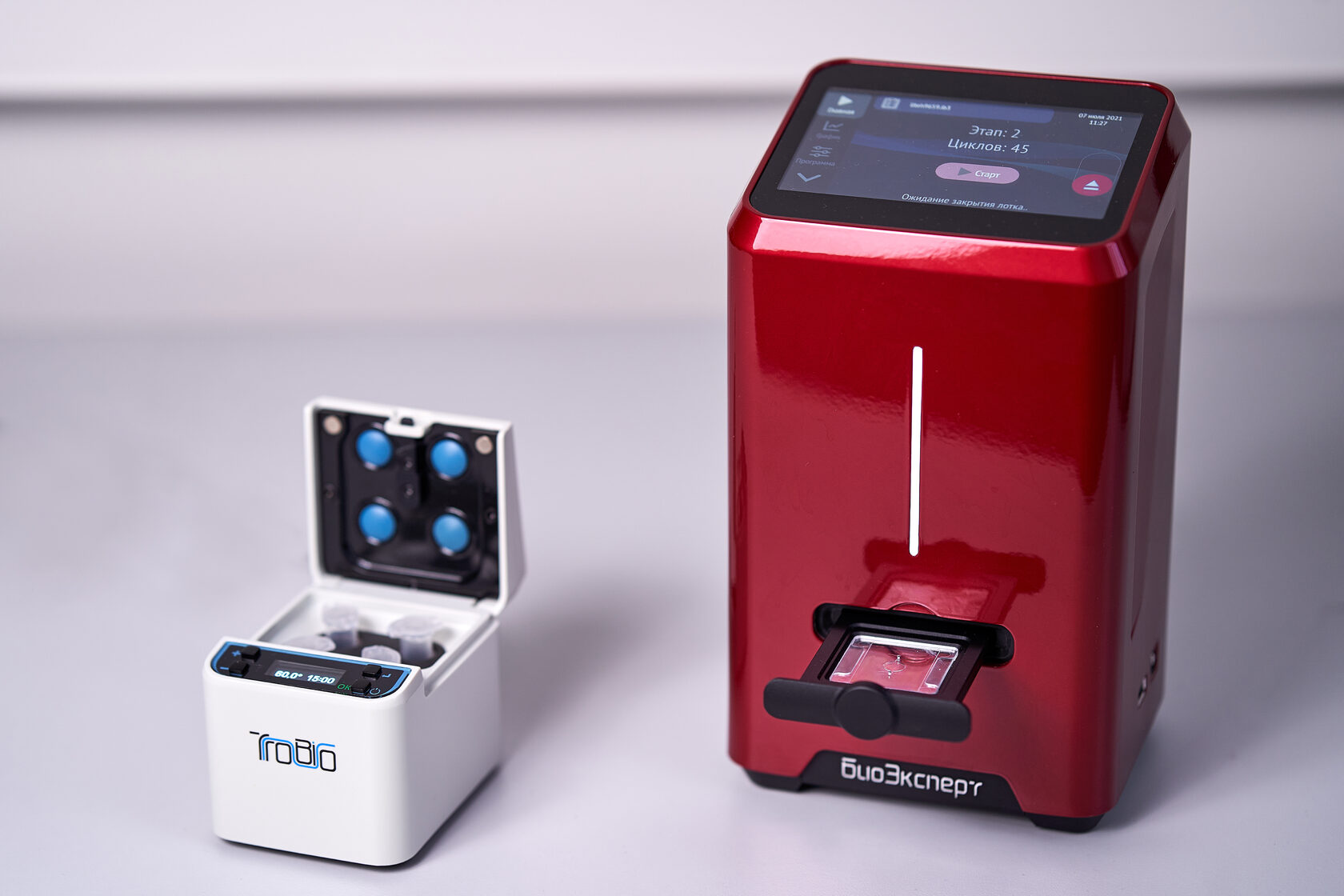

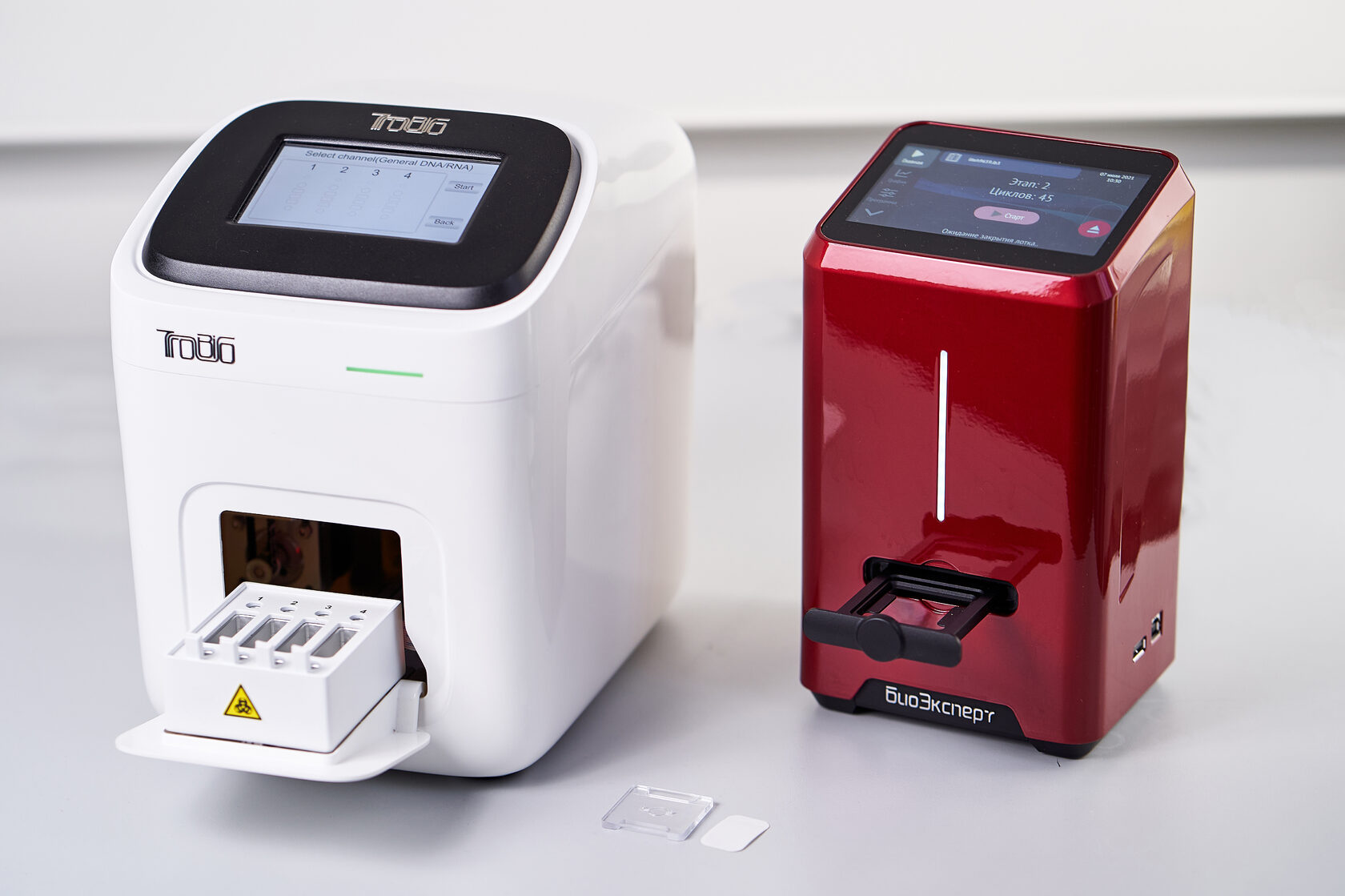

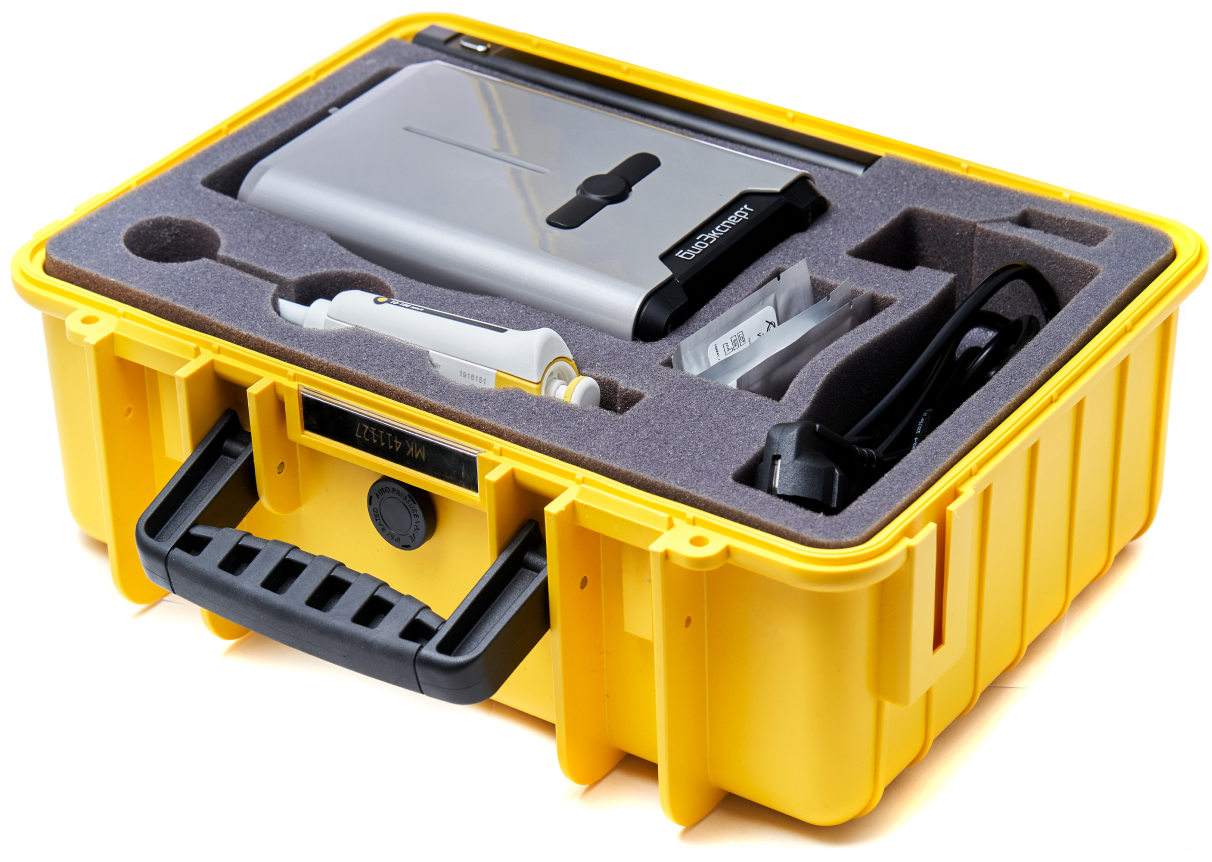

Delivery Options
PCR cartridges
Terra solid-state thermostat
Kit contains
BioExpert nucleic acid thermocycler
BioExpert nucleic acid thermocycler
Kit contains
Ion automated nucleic acid extractor
Extraction kit
PCR cartridges
BioExpert Mobile detecting real-time PCRthermocycler
Power supply
Disposable cartridge chips set
Dispenser with 100 µl tips
Basic set
10 PCR cartridges
BioExpert thermocycler
Dispenser with tips for 100 µl
Power supply
The delivery package can be adjusted for your needs
Battery pack
